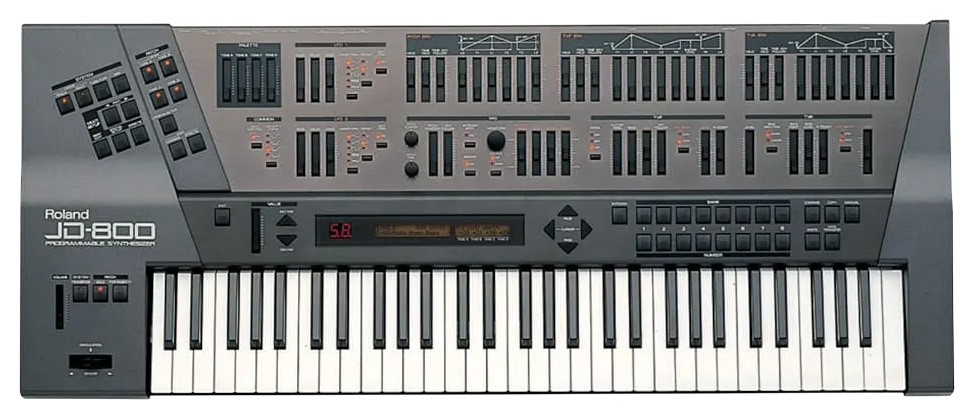

Roland JD-800
The Roland JD-800 is a digital synth used by Prince. He first used on on the song Letter 4 Miles from the Diamonds & Pearls Super Deluxe Edition. It would become his primary keyboard for the rest of the 1990s. It can be heard prominently on the The Lovesymbol Album, Come, Gold Experience and Emancipation albums. Later in the 1990s, Prince combined two JD-800s into a single hybrid instrument. This was used on the Rave Un2 The Joy Fantastic album. It is similar to the Roland D-50, which was Prince's main keyboard in the late 1980s and early 1990s, but has a range of analogue synthesizer-style controls.
Roland also made a rack version, the JD-990. Renato Neto used one on the Musicology tour.
Specifications
| Synthesis | Digital sample-based subtractive (Linear Arhithmetic) |
|---|---|
| Polyphony | 24 voices with one tone, 6 voices with four tones |
| Oscillators | Up to four waveforms per patch |
| Samples | 108 PCM samples |
| LFOs | 2 x Triangle, square, sawtooth, sample and hold |
| Filter | Low pass, band pass, high pass |
| Envelope | 3 x Multi-stage |
| Keyboard | 61 keys with velocity and aftertouch |
| Controls | Pitch and modulation lever |
| Memory | 64 patches |
| Effects | Chorus, delay, distortion, EQ, phaser, spectrum, reverb, enhancer |
